Rod elements are widely used in industry for convection heating, conduction heating and also for radiation heating.
Heating rods are versatile because they
- can be bent into any shape
- operate at high temperatures (up to 650°C)
- can be immersed into liquids.
The robust metal sheathed construction ensures safety (electrical insulation) and protection against moisture and dirt.
View products! Browse our catalogues & add products of interest to your "enquiry list" or
contact us to discuss your requirements.
contact us to discuss your requirements.
Tubular sheathed heating elements: Construction

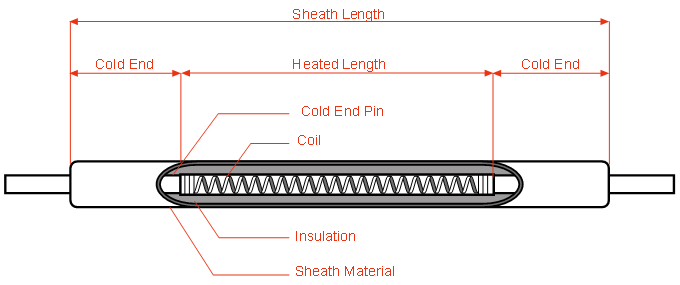

The rod element consists of a heating coil, imbedded in compacted MgO-powder and protected by an outer metal sheath.
An unheated zone on either end prevents overheating of the termination and the exposed part of the rod.
Typical applications:
|
|
Ordering Options
Rod Element Sheath Materials
- Incoloy 800 (I)
- Incoloy 825 (H)
- Copper (C)
- Titanium (T)
- Stainless Steel 304/321 (S)
- Finned Incoloy 800 (F)
- Other (X)
Terminations of Rod Heating Elements
| Illustration | Description | Order Code |
 | Plain Pin | 0 |
 | Spade | 1 |
 | M4 Straight: Tab & Saddle | 2 |
 | M4 Bent: Tab & Saddle | 3 |
 | M5 Post with nuts: (stainless steel) | 4 |
 | Silicone Rubber Cable, Moisture proof | 7 |
 | Ni-Wire, Glass Insulated | 8 |
 | Ni-Wire in Ceramic Beads | 9 |
| Other | X |

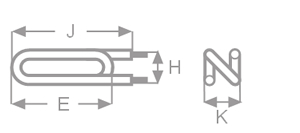

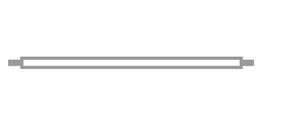

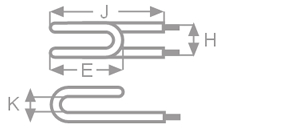

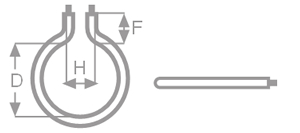

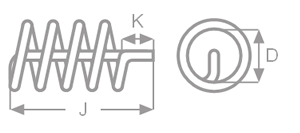

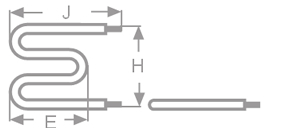

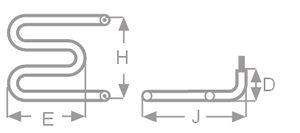

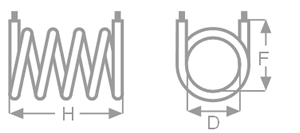

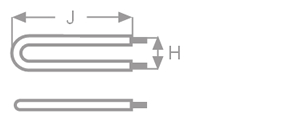

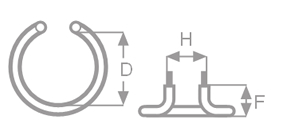

Shapes of Rod Heating Element
| Illustration | Order Code | Illustration | Order Code |
 | 0 |  | D |
 | E |  | U |
 | F |  | W |
 | T |  | G |
 | C |  | H |
Mounting

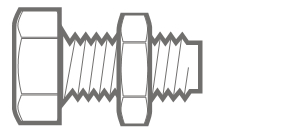

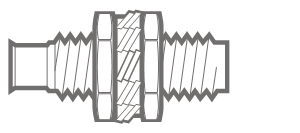

 Brass Bush with Nut |  Steel Clinch Brush |
| Description | Ordering Code |
| Plain | 0 |
| 1/2" UNF x 25mm Steel Clinch. 2 Nuts & Washer (for air heaters) | 1 |
| 1/2" UNF x 16mm Brass with Nut | 2 |
| 1/2" UNF x 25mm Brass with Nut | 3 |
| 1/2" UNF x 50mm Brass with Nut | 4 |
| 1M14 x 1.25 x 16mm Brass with Nut | 5 |
